For PV energy storage systems
PS5120E
Modular 19-inch LiFePO₄ battery module for residential use and backup power
The PS5120E is a battery module with an integrated battery management system (BMS). Each module provides 5.12 kWh, supporting system capacities up to 153.6 kWh.
- 5.12 kWh per module – scalable up to 153.6 kWh
- 51.2 V nominal voltage and 100 Ah nominal capacity
- 19-inch rack format with a height of 3U
- > 5,000 cycles at 25 °C and 80% depth of discharge (DoD)
- Approved for FSP hybrid inverters and single-phase online UPS
Our offer is exclusively for professional installers, distributors and system integrators.
- Up to 153.6 kWh
- >5,000 cycles
- IP20
- 19-inch format
Technical specifications
Electrical
- Energy per module
- 5.12 kWh
- Maximum system capacity
- Up to 153.6 kWh
- Nominal voltage
- 51.2 V
- Nominal capacity
- 100 Ah
Battery
- Battery type
- LiFePO₄ (lithium iron phosphate)
- Cycle life
- > 5,000 cycles at 25 °C and 80% DoD
Protection & communication
- Protection rating
- IP20
- Communication
- RS485 / CAN
Form factor
- Rack format
- 19 inches
- Mounting height
- 3U
Product details
Technology that blends in. Performance that impresses.
The PS5120E in its 19" form factor is a reliable, maintenance-free battery storage module, built with cobalt- and nickel-free LiFePO₄ cells. It offers a high energy density combined with a long service life and cycle stability.
Capacity
Scalable to 153.6 kWh.
Efficient, safe energy storage with an integrated battery management system (BMS).
-
Form factor
3U installation height
19-inch format for rack mounting.
-
Operation
Maintenance-free
A dependable storage module with no ongoing maintenance effort.
-
Materials
Cobalt-free cell chemistry
LiFePO₄ cells contain no cobalt or nickel.
-
Cell technology
High energy density
Combined with a long service life and cycle stability.
- 153.6 kWhMaximum capacity
- >5,000Cycles at 25 °C @ 80 % DoD
- 51.2 VNominal voltage
-

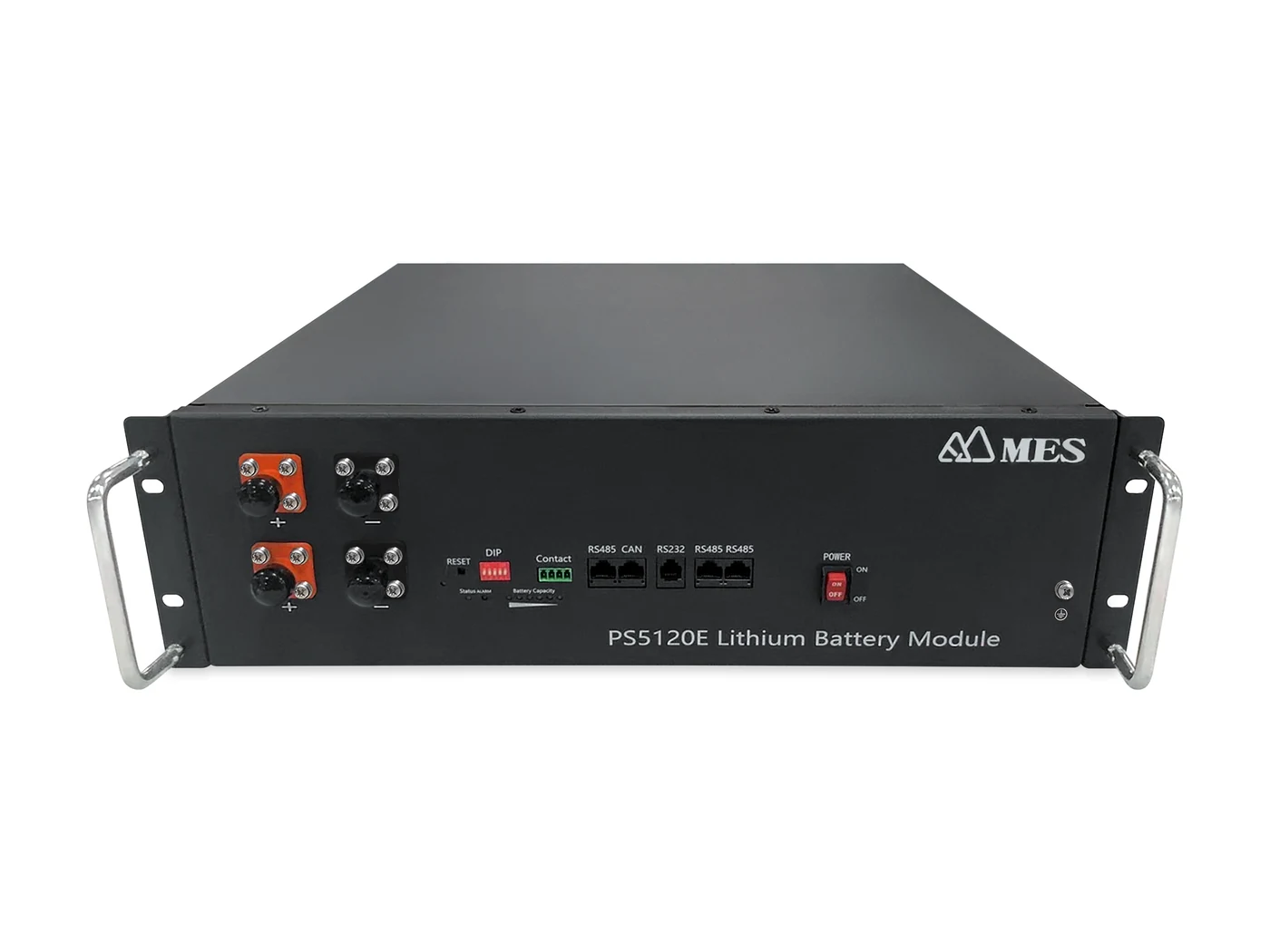

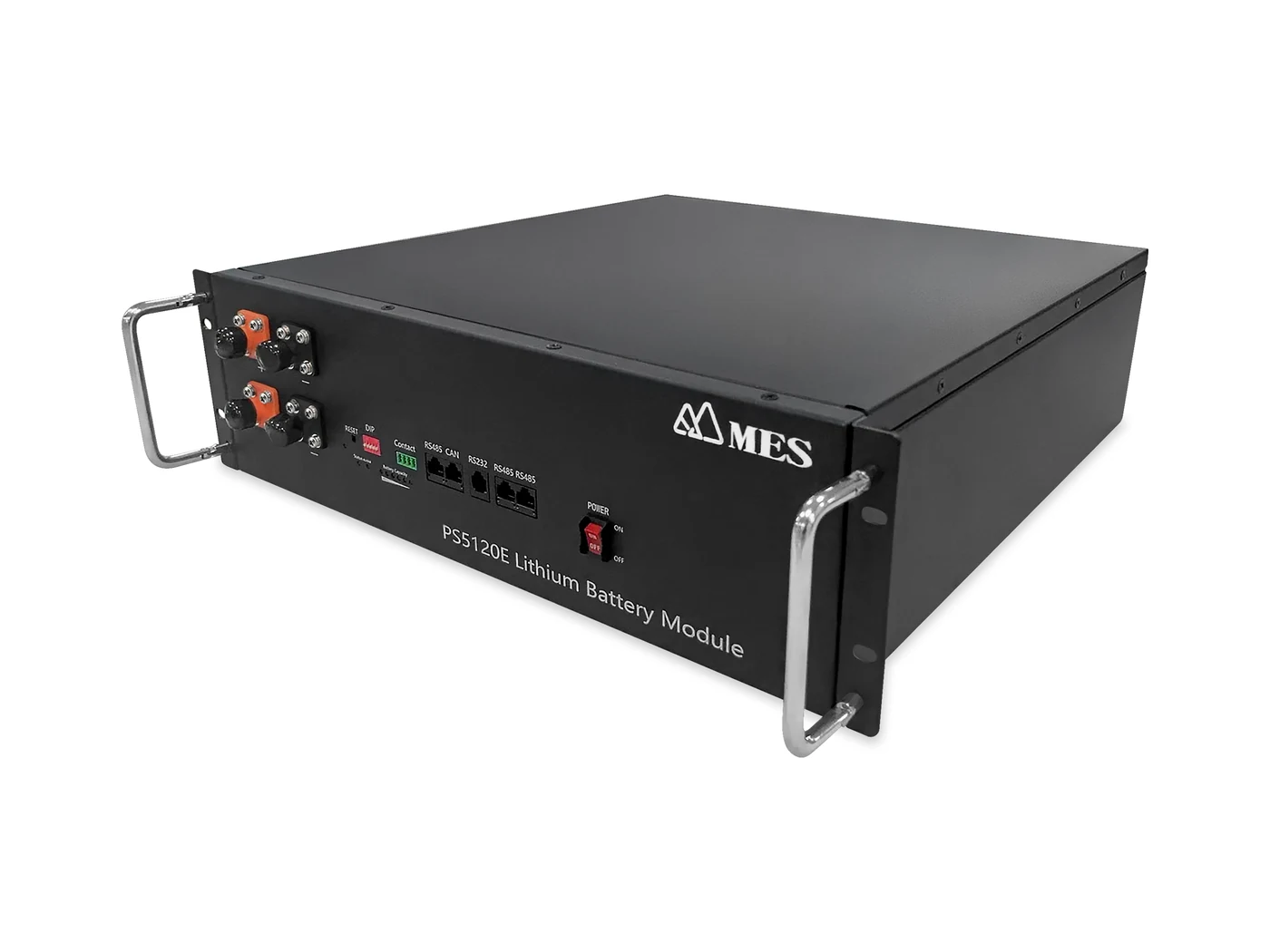

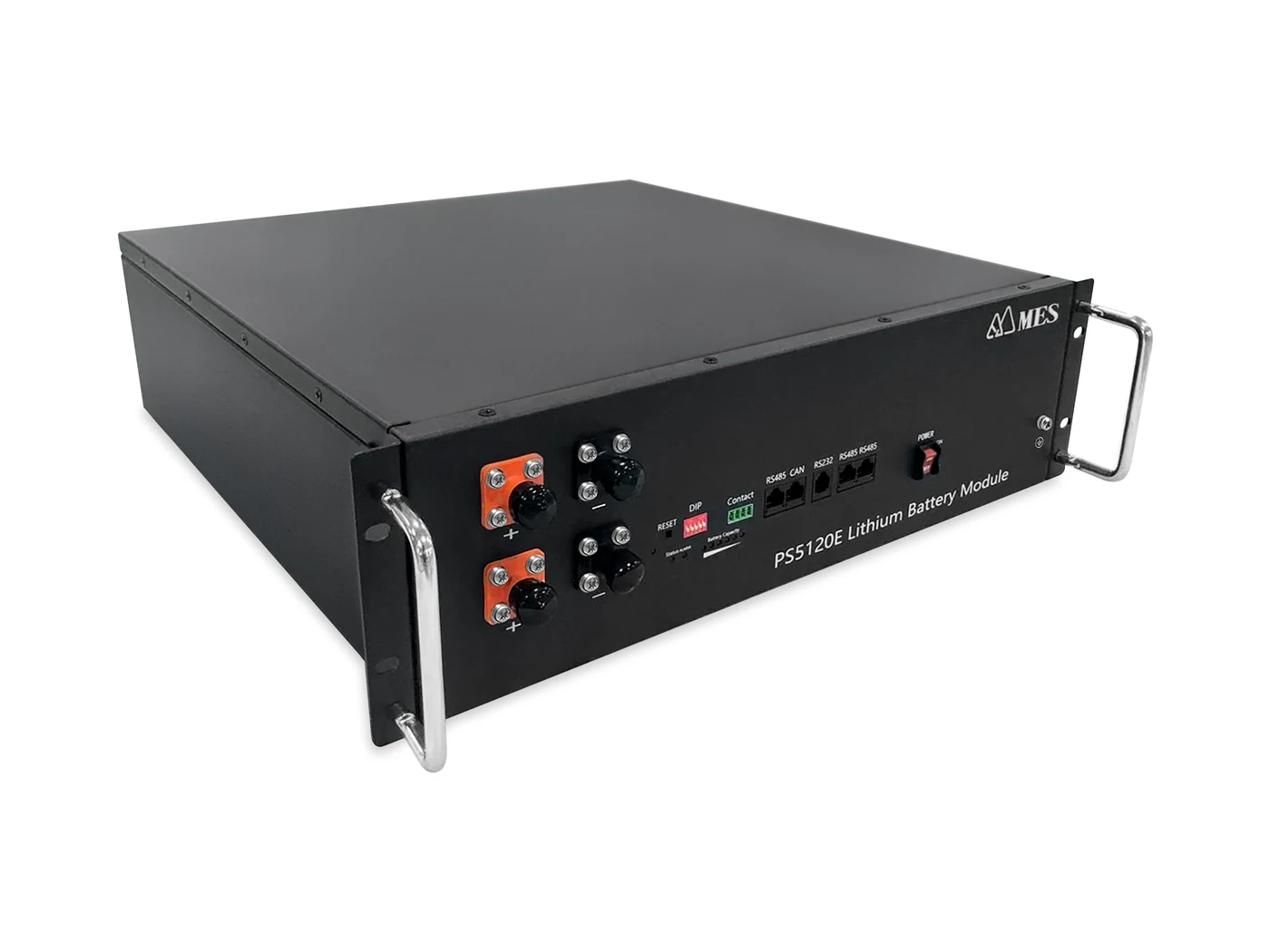

The module. Power terminals, RS485 and CAN are all on the front. -

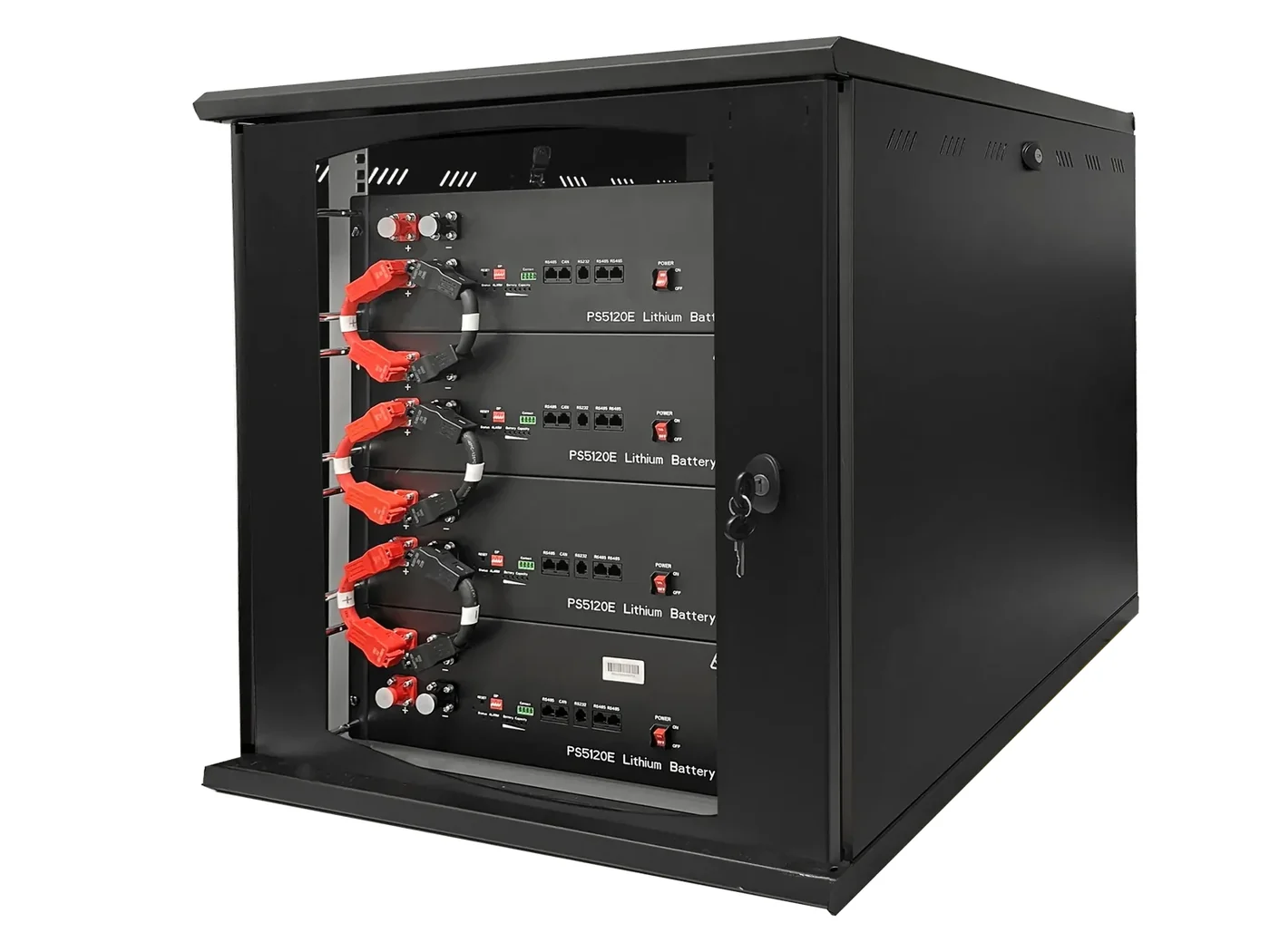

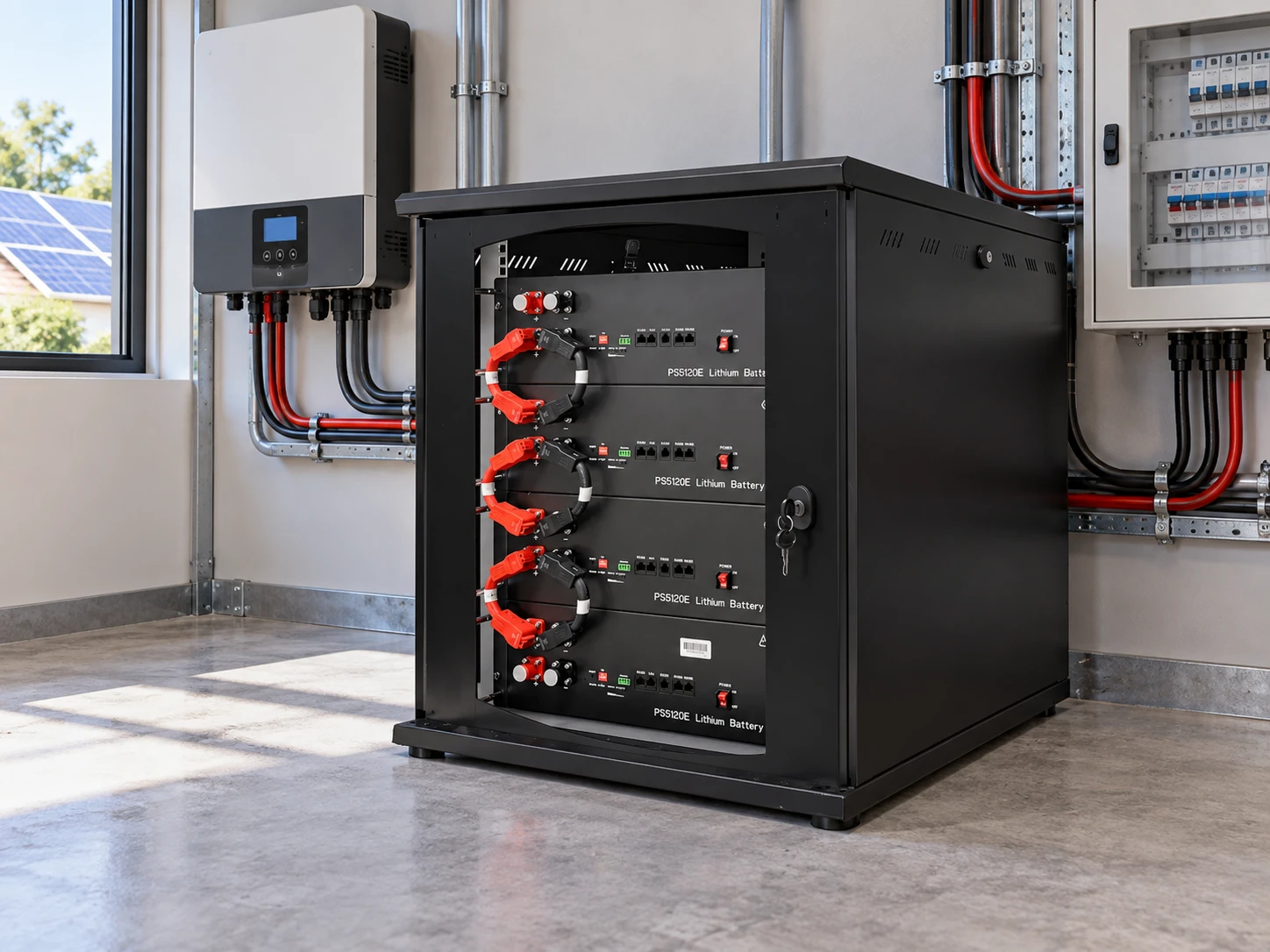

In the rack. Several modules are installed one above the other and linked together.
Versatile in use.
The storage module is versatile in use: it is approved and ready for our FSP hybrid inverters as well as for our single-phase online UPS systems.
Connections
- Max. continuous charge current 80 A Max. continuous discharge current 100 A.
- RS485 / CAN Communication with the inverter.
Downloads
Datasheets, manuals, certificates and software for the PS5120E.
9 files
- MES PS5120E Datesheet.pdfDatasheet · PDF · (English, Français) · 428 KB428 KBDownloadDownload
- MES PS5120E Datesheet (DE version).pdfDatasheet · PDF · (Deutsch) · 427 KB427 KBDownloadDownload
- PS5120E-V2 Benutzerhandbuch V3.0 (EN)User manual · PDF · (English) · 1.9 MB1.9 MBDownloadDownload
- CB Safety Certificate_CYML-ESH-P26090749.pdfCertificates · PDF · 188 KB188 KBDownloadDownload
- CB Saftey Report_CYML-ESH-P26090749.pdfCertificates · PDF · 2.5 MB2.5 MBDownloadDownload
- CCJC2512257R01 UN38.3.pdfCertificates · PDF · 1.5 MB1.5 MBDownloadDownload
- CCJC2512257R02 MSDS.pdfCertificates · PDF · 863 KB863 KBDownloadDownload
- Cert_LGT26F098C01_EMC_EN IEC 61000-6-3-6-1.pdfCertificates · PDF · 250 KB250 KBDownloadDownload
- TR_LGT26F098EM01_EMC_EN IEC 61000-6-3-6-1-Report.pdfCertificates · PDF · 2.7 MB2.7 MBDownloadDownload
