For industry

THOR215

Industrial high-performance battery storage system up to 215 kWh

Smart high-voltage industrial solution with 215 kWh.

215 kWh storage capacity
Scalable up to 24 units
IP54 protection rating
Modular installation for flexible projects

215 kWh
100 kW
IP54
Up to 24 units

Technical specifications

Electrical

Energy storage capacity: 215 kWh
Rated voltage: 768 V
Charge / discharge current: 140 A
Inverter power: 100 kW

Battery

Battery type: LiFePO₄ (lithium iron phosphate)
Scalability: Up to 24 units

Protection & communication

Protection rating: IP54

Physical

System size: 1160 × 2100 × 1400 mm (excl. air conditioner)
Weight: Approx. 2.45 t (incl. packing)
Cooling system: Air cooling

Product details

Technology that drives your business. Performance that impresses.

The THOR215 is a modular high-performance battery storage system with up to 215 kWh of storage capacity. It was developed specifically for large commercial and industrial energy projects: it optimises your self-consumption, reduces peak loads and keeps the energy supply stable — including in off-grid and hybrid applications.

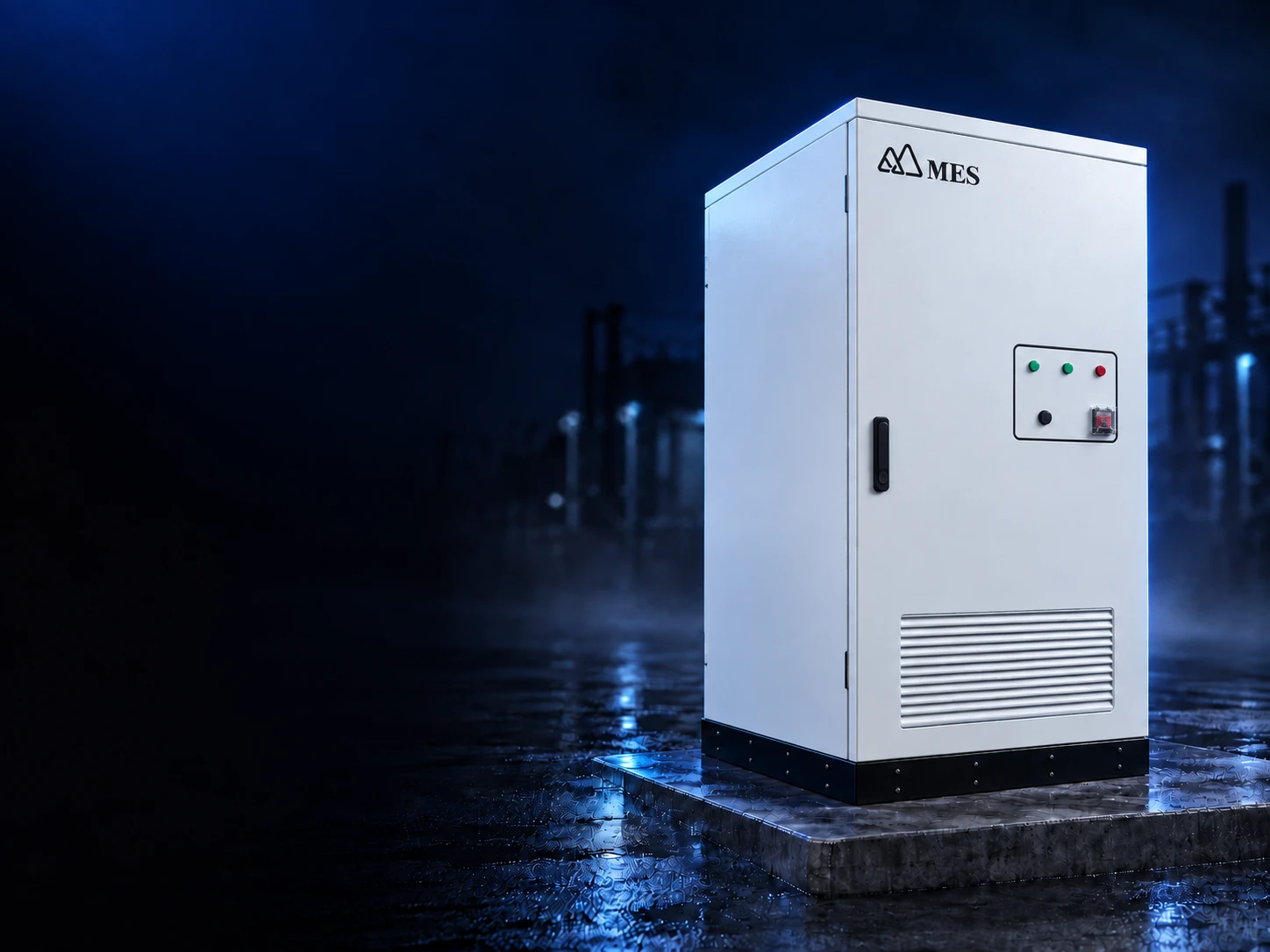

All-in-one

215 kWh in an outdoor cabinet.

Rugged complete system – ideal for commercial and industrial applications.
Safety

Active safety management

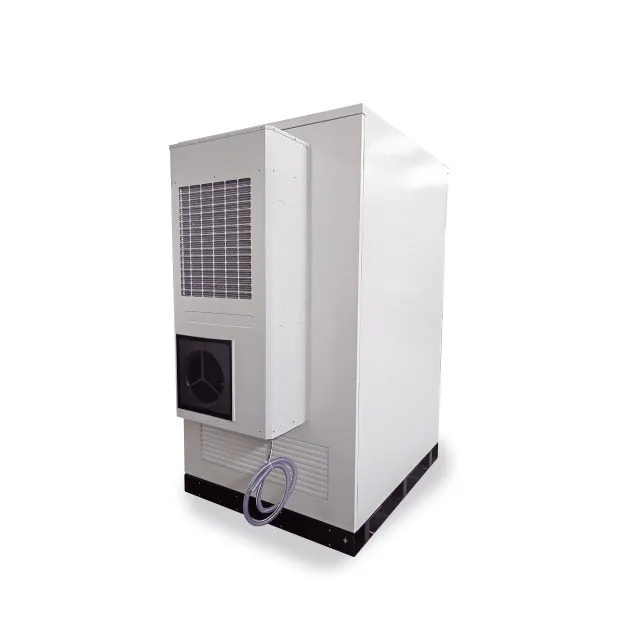

Air cooling and fully automatic fire suppression system (aerosol; perfluorohexanone).
Energy management

Integrated EMS & cloud monitoring

Optimises peak shaving and load management with several operating modes. Remote O&M for straightforward maintenance and oversight.
Protection rating

Weatherproof & protected

Corrosion protection, dust- and watertight, UV-resistant, shock-proof.
Cell technology

Advanced LiFePO₄ cells

High-quality cells for high safety and a long service life.

215 kWhStorage capacity
100 kWInverter power
IP54Protection rating
24Units, scalable

Up to 24 units.

Large projects grow in stages. The THOR215 extends to as many as 24 units – the installation follows demand instead of anticipating it. Peak shaving and demand control are handled by the EMS of the main cabinet configuration.

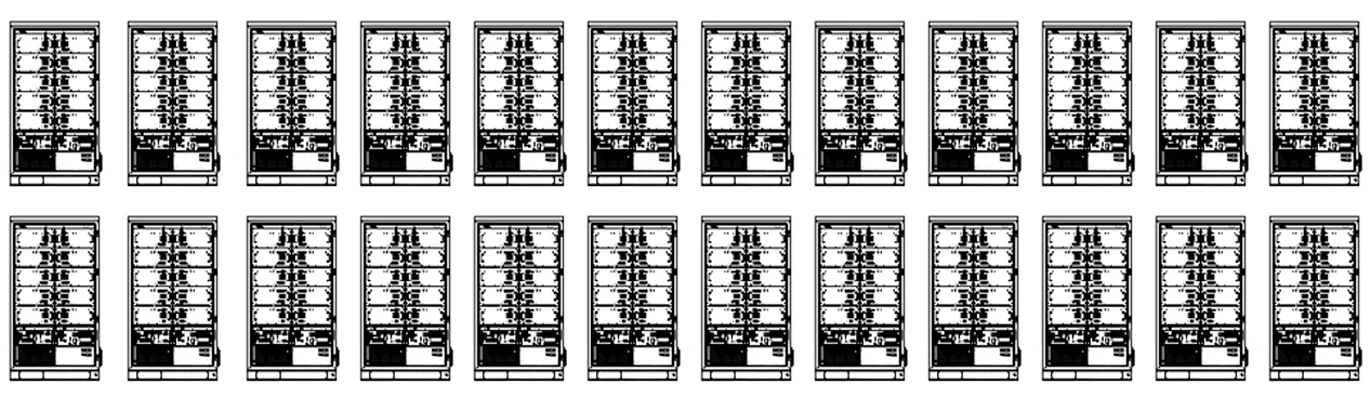

24 THOR215 units side by side as a scaled installation

The brain of your energy system: the EMS explained.

The EMS is the intelligent control centre of your energy system. It monitors and regulates every flow of energy between the PV system, the battery storage, the grid and the loads – fully automatically and in real time.

Whether it is self-consumption optimisation, feeding in when electricity prices are high, charging on favourable tariffs or backup power supply: the EMS makes sure energy is available exactly when it is needed – efficiently, economically and reliably. With functions such as load management (peak shaving), dynamic tariff control and continuous system monitoring, the EMS gives you full control and maximum independence.

PCS – the power behind your storage solution.

The battery storage system intelligently converts stored energy into usable electricity. The energy held in the battery is direct current (DC) and is converted by the Power Conversion System (PCS) into alternating current (AC). It can then be passed straight to the loads or fed into the public grid.

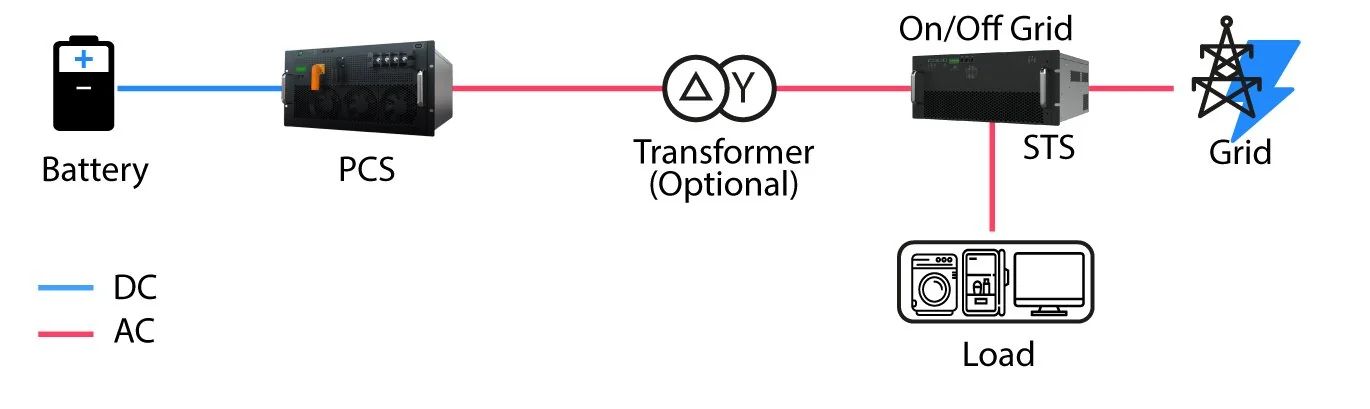

Diagram of the energy flow: battery, PCS, optional transformer, STS, grid and loads — An optional transformer adapts the system to higher grid voltages – ideal for commercial or industrial applications. It runs both on-grid and off-grid; in off-grid mode it reliably takes over the power supply during grid outages. DC in blue, AC in red.

Available as an option

MPPT up to 120 kW MPPT (Maximum Power Point Tracking) keeps solar modules operating at their optimum working point at all times. Because irradiation, temperature and shading change constantly, the MPPT controller adjusts voltage and current continuously and so maximises the energy yield.
STS – Static Transfer Switch Monitors the power supply continuously and switches automatically to the battery storage within milliseconds during grid outages or unstable grid conditions. The static, wear-free transfer ensures an uninterrupted supply.
